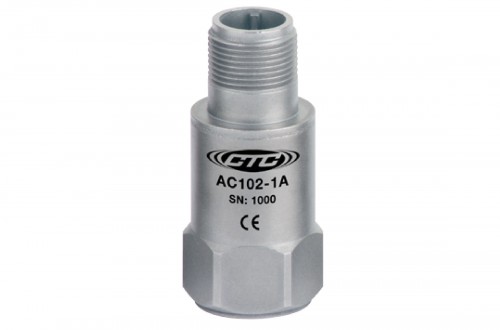

AC102 Multi-Purpose Accelerometer, Top Exit Connector / Cable, 100 mV/g

Multi-purpose accelerometer for vibration measurement in industrial applications. Reliable and accurate sensor for vast majority situations. May be supplied with integral or armored cable. Very wide frequency response: 0.5 to 15000 Hz!













Specifications


General
Sensitivity (± 10%)
100 mv/g
Frequency Response (± 3dB)
0,5-15000 Hz
Frequency Response (± 10%)
2,0-10000 Hz
Dynamic Range
± 50g, peak
Electrical
Setting Time
<2.5 seconds
Voltage Source (IEPE)
18-30 VDC
Constant Current Excitation
2-10 mA
Spectral Noise @ 10 Hz
14 μg/√Hz
Spectral Noise @ 100 Hz
2.3 μg/√Hz
Spectral Noise @ 1000 Hz
2 μg/√Hz
Output Impedance
<100 ohm
Case Isolation
>108 ohm
Environmental
Temperature range
-50 to 121 oC
Maximum Shock Protection
5000 g, peak
Electromagnetic Sensitivity
CE
Sealing
IP68

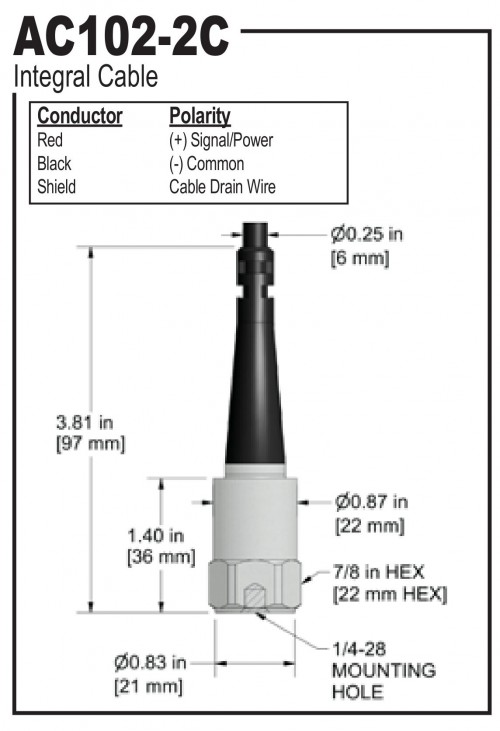

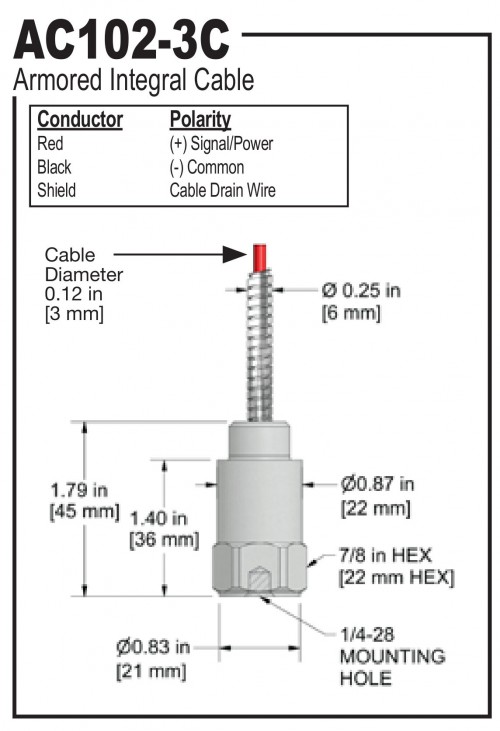

Submersible Depth (AC102-2C/3C)
60 m
Physical
Sensing Element
PZT Ceramic
Sensing Structure
Shear Mode
Weight
90 grams
Case Material
316L Stainless Steel
Mounting
¼-28
Connector (non-integral)

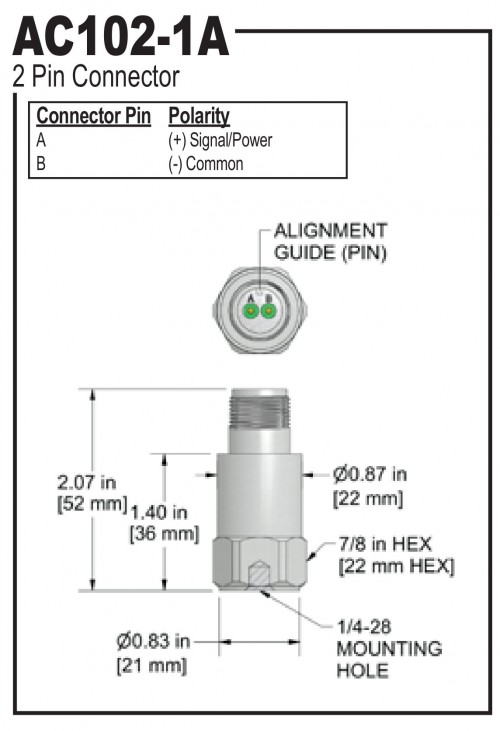

2 Pin MIL-C-5015
Resonant Frequency
23000 Hz
Mounting Torque
2.7 to 6.8 Nm
Mounting Hardware
M6x1 Adapter Stud
Calibration Certificate
CA10

AC102 Datasheet
